Intro

So you have made some Consumption Logic Apps and now you’re thinking about how to turn them into proper solutions with IaC and Bicep.

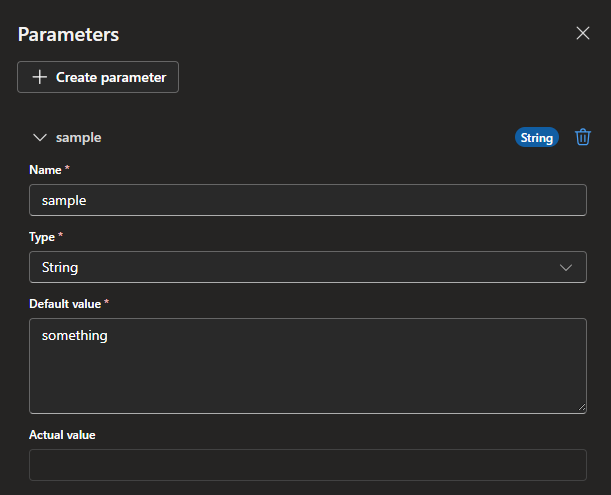

Let’s first take a look on what happens when we insert a parameter inside the designer: Screenshot of a Logic App Parameter. Now we have a parameter that we can use in our solution with the following values:

Name: sample
Type: String
Default value: something
Actual value:

And what we can now see by going to the Logic App code view section is something like this:

{
    "definition": {
        "$schema": "https://schema.management.azure.com/providers/Microsoft.Logic/schemas/2016-06-01/workflowdefinition.json#",
        "contentVersion": "1.0.0.0",
        "triggers": {
            "When_a_HTTP_request_is_received": {
                "type": "Request",
                "kind": "Http"
            }
        },
        "actions": {
            "Compose": {
                "runAfter": {},
                "type": "Compose",
                "inputs": "@parameters('sample')"
            }
        },
        "outputs": {},
        "parameters": {
            "sample": {
                "defaultValue": "something",
                "type": "String"
            },
            "$connections": {
                "type": "Object",
                "defaultValue": {}
            }
        }
    },
    "parameters": {
        "$connections": {
            "type": "Object",
            "value": {}
        }
    }
}

This is now basically a usable template that you can use.

Bicep template

Now let’s take a look at how we could deploy this solution by turning it into a Bicep template. From the documentation we could see that the preferred way looks to be that the Bicep file itself would contain all the workflow information, this would honestly cause a lot of manual work so we’re gonna sidestep that a little bit.

Logic Apps Bicep documentation

First order of business is taking in the actual Bicep file and what it needs, at minimum we have these:

param name string

resource logicAppConsumption 'Microsoft.Logic/workflows@2019-05-01' = {
  name: name
  location: location
  properties: {
    definition: definition
  }
}

The definition part has all the content that we can see in the Logic App code view so to have some nice separation we’re going to do the following:

Have a separate file where we copy everything from the Logic App code view, meaning that we can make changes from the portal and copy everything.
Import that file in the Bicep in deployment Now the file structure should look something like this:

└─ LogicApp
   ├─ logicAppConsumption.bicep
   └─ workflow.json

Luckily we can do that with the file function in Bicep quite easily with loadJsonContent. When we load it as JSON we can also select only a part of the file, meaning we can take the content of the definition part that we need.

Bicep file functions documentation

This results in the following:

param name string
var definitionFile = loadJsonContent('workflow.json').definition

resource logicAppConsumption 'Microsoft.Logic/workflows@2019-05-01' = {
  name: name
  location: location
  properties: {
    definition: definitionFile
  }
}

Now this is moving the definition to Bicep without having to manually fiddle around with it every time.

Bicep parameters

Unless you want to make a separate workflow each time for different environments, we would need to take a deeper look into how the parameters are set in the workflow file and the Bicep file. If you look at the workflow definition file in properties it shows something like this:

├─ definition
│  ├─ parameters
│  ├─ triggers
│  └─ actions
│  └─ outputs
└─ parameters

Now this shows that parameters are listed twice in the workflow file, the definition/parameters shows the actual parameter that we originally created in the portal side. Now since we are importing this directly from the file we should leave it alone. The second is the template parameters that we can use to our advantage. We can modify the Bicep file to include these parameters and insert them to the parameters section:

param name string
param parameters object = {
  sample: {
    value: 'something else'
  }
var definitionFile = loadJsonContent('workflow.json').definition

resource logicAppConsumption 'Microsoft.Logic/workflows@2019-05-01' = {
  name: name
  location: location
  properties: {
    definition: definitionFile
    parameters: parameters
  }
}

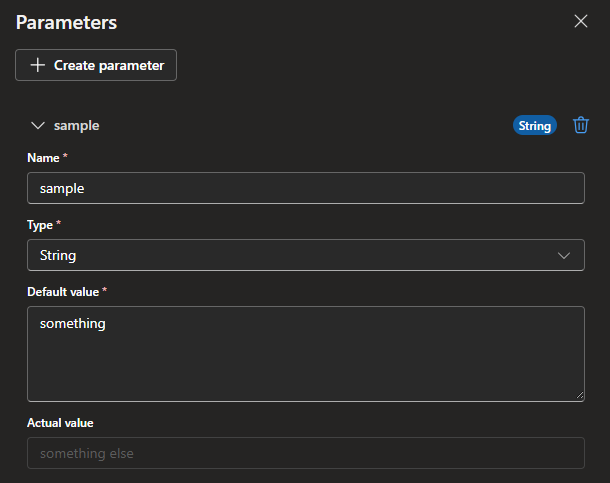

Once you have deployed this template it will now properly show you that the parameter also has an actual value assigned: Screenshot of a Logic App Parameter.

Separation of environments

Now the next step is to have different values per environment. For that to work properly we are going to need some separate parameter files in our solution.

└─ LogicApp
   ├─ logicAppConsumption.bicep
   ├─ logicAppConsumption.dev.bicepparam
   └─ workflow.json

Then we need to just tweak the bicep solution slightly:

param name string
param parameters object
var definitionFile = loadJsonContent('workflow.json').definition

resource logicAppConsumption 'Microsoft.Logic/workflows@2019-05-01' = {
  name: name
  location: location
  properties: {
    definition: definitionFile
    parameters: parameters
  }
}

And create the parameter file:

using './logicAppConsumption.bicep'

param logicAppName = 'la-consumption'
param parameters = {
  sample: {
    value: 'something else'
  }
}

Now we can finally have a separate file for both the workflow definition so you can copy/paste it directly from the portal, use the native parameters inside the Logic App designer, have a static Bicep file for deployment and have a separate parameter file per environment.

TLDR

Use the parameters inside the Logic App designer
Copy/paste from the code view the workflow definition into a separate file
In Bicep use the loadJsonContent().definition to insert the definition file
Insert the template parameters in Bicep from a separate parameter file
